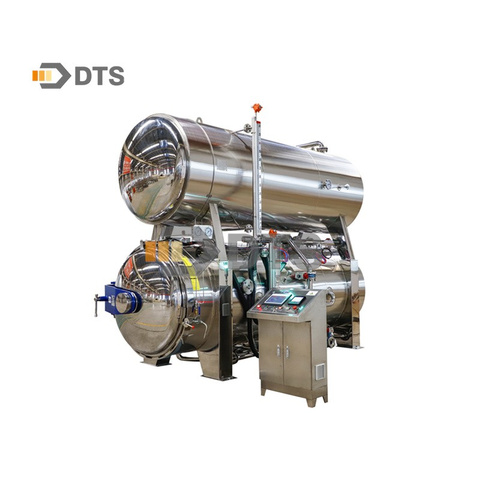

CE Double Chamber Retort Pouch for Sauce Bagged Food Sterilizer
Packing materials applicable to the water immersion retort
| Plastic bottle | bowl/cup |
| Large size flexible packages | Wrap casing packaging |
Dairy: Tin can, plastic bottle, bowl/cup, glass bottle/jar, flexible pouch packaging
Flexible packaging meat, poultry, sausages
Large size flexible packaging fish, seafood
Large size flexible packaging ready to eat meal
The main type and dimensions of water immersion retort
| Model | Diameter(mm) | Cylinder length(mm) | Volume(m3) | Length(mm) | Width(mm) | Height(mm) | Basket size(mm) | Design temperature(°C | Design pressure(bar) |
| J-1002 | 1000 | 1600 | 1.49 | 3200 | 1700 | 2900 | 758*650*621 | 147 | 3.5 |
| J-1003 | 1000 | 2400 | 2.12 | 4000 | 1700 | 2900 | 758*650*621 | 147 | 3.5 |
| J-1203 | 1200 | 2700 | 3.45 | 4500 | 2100 | 3350 | 860*800*775 | 147 | 3.5 |
| J-1204 | 1200 | 3600 | 4.47 | 5400 | 2100 | 3350 | 860*800*775 | 147 | 3.5 |
| J-1205 | 1200 | 4500 | 5.49 | 6300 | 2100 | 3350 | 860*800*775 | 147 | 3.5 |
| J-1403 | 1400 | 3000 | 5.24 | 5200 | 2500 | 3900 | 920*920*915 | 147 | 3.5 |
| J-1404 | 1400 | 3900 | 6.62 | 6050 | 2500 | 3900 | 920*920*915 | 147 | 3.5 |
| J-1504 | 1500 | 4250 | 8.26 | 6650 | 2600 | 4450 | 1000*1000*975 | 147 | 3.5 |
| J-1505 | 1500 | 5300 | 10.12 | 7700 | 2600 | 4450 | 1000*1000*975 | 147 | 3.5 |
The process water is preheated in the upper tank, sterilization started from high temperature, which can be sterilized at high temperature and short time.
The water flow is dispersed to the center of the product tray through the liquid flow switching device to achieve a uniform sterilization effect.
Uniform water flow distribution
By switching the water flow direction in the retort vessel, uniform water flow is achieved at any position in the vertical and horizontal directions. An ideal system for dispersing water to the center of each product tray to achieve uniform sterilization without dead ends.
High temperature short time treatment
High temperature short time sterilization can be performed by heating hot water in a hot water tank in advance and heating from high temperature to sterilize.
Suitable for easily deformed containers:
Because water has buoyancy, it can form a very good protective effect on the container under high temperature state.
Suitable for handling large packaging canned food
It is difficult to heat and sterilize the central part of large canned food in a short time by using a stationary retort, especially for food with high viscosity.
By rotating, the high viscosity food can be evenly heated to the center in a short time, and achieve effective sterilization effect. The buoyancy of the water at high temperature also plays a role in protecting the product packaging during the rotating process.
Other accessories for water immersion retort
Fully automatic integration options for all hardware, including sterilizer
Models with high capacity can accommodate a variety of container types.
Fast and uniform sterilization processing.
Uniform temperature and heat distribution.
Save water without using water treatment chemicals
Significantly reduce heating and cooling costs per process.
Irregularly shaped containers can be firmly held in place during shaking(when equipped with rotation function).
Thermal process control monitoring distillation system.
Rim tracking coordinates and tracks rim movement.
Continuous technological research and development always maintained advanced technology.
Service before sale
1. 24 hours online Inquiry will be quick reply by email.
We also can answer all questions by any online chatting tools (Wechat , Whatsapp ,Skype ,TradeManager )
2. Professionally and patiently introduction, details pictures and working video to show machines
3. DTS has own laboratory, we can provide free sterilization testing services for customer samples, the testing area is equipped with all kinds of energy sources.
Service on sale
1. We supply retort pre-sale program, custom drawing design and layout planning.
2. DTS will do the whole line commission as well as FAT so that we can guarantee our retort punctual start-up and run more faster and smoothly.
3. Send the retort picture and video before delivery, reinforce and pack according to customer requirements after confirming the machine without objection
Service after sale
1. DTS supply marine transportation insurance and one year warranty.
2.24 hours online to solve any problem. Supply you English manual book and technical supporting.
3.DTS has a perfect after-sales service system and team, we can provide online coaching or on-site installation, commissioning and training services, ensure the normal operation of the retort.
Q: What methods of payment are acceptable?
A: FOB, CFR & CIF optional; It’s mainly depend on client’s requirement;
Q: Do you have machines in stock?
A: Yes, but just the small-scale machines. Machines are different with other products, most of the large-scale machines are designed according to our customers' requirements.
Q: What’s the lead time after placing order ?
A: Usually it takes about 2-3 months after we received your deposit.
However, it would depend on our production line schedule(the timing clients place order)and the complication of the item.
Q: What is the cost of shipping?
A: Shipping cost is based on the following elements:
1.Type of container needed
2. Number of packages
3. Gross weight
4. Package volume
5. Destination port
